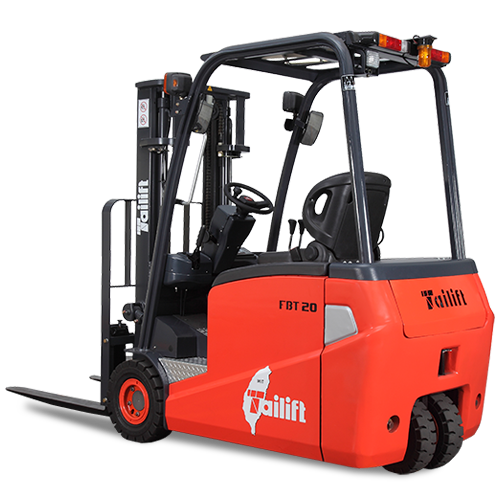

Tailift Z2000 ZFBT20 Series (2.0T)

Electric counterbalance trucks

Z2000

1.8~2.0T

ZFBT18-20 Series

Categories ,

Description

Easy Operation

Multifunctional LCD instrument panel
A large and easy-to-read multifunctional LCD panel is ergonomic designed for the operator.

Hydraulic control
– The ergonomic design of levers is provide the prefect positions for operator‘s hand without causing any extra stress.
– Multifunction armrests with F/R control lever make forward and reverse easier.

Electric minilever and joystick
Optional advanced hydraulics Minlever and joystick with armrest are all new design gives more comfort to the operator.



Hight Stability

Advanced AC controller system
Front dual drive motor reduce small turning radius (standard for FBT)
Integral heavy duty chassis
A strong no-bolt integral heavy duty chassis gives the driver 20% more protection from falling loads. Tailift forklifts built with Integral heavy duty chassis, suite for all kind working surface.

Hydraulic lock out system
Our new hydraulic lock out system option which automatically lock off all hydraulic functions and transmission drive if it has not detected the presence of the operator.



Great Performance

Hydraulic steering axle
– The new axle provides wider steering angles to 85 degree and reduces to a smaller turning radius.
– Its compact size, allows the truck to work in narrower aisles.
– Using high and low blockage fixed way to fix shaft, extend working life time and lower maintenance cost.
– Grease nipples located on the contact points will save time and cost to do maintenance.

Smaller steering wheel
– Smaller steering wheel (300mm)easy to operate and reduce operator‘s arm and shoulder’s workload.
– The easy-handling steering wheel column with tilt adjustment.

Braking system
Simplify mechanical linkage of vertical braking system to reduce drive component wear and tear? Extend brake pedal and mechanical working life.



Easy Service

– Side battery access Side battery access is easy remove or exchange the truck battery facilitating
– Rear service panel Rear service panel are easy remove for quick service check and repair
– Centralized fuse box A centralized fuse box for easy inspection
